1100mm x 2200mm crowd Control Barriers For Event Weight 18kg Outer Frame 25mm upright 20mm
LNF familar with Crowd Control Barrier design and Production in a beat duty price no matter you are in US or Australia we trust we accumulate a huge experience in manufactuered and export
Crowd Control Barriers Frame 1.5" Tube Height:3.6'(1100mm)*Wdith :6.5'(2000mm) Upright :5/8"*4' spacing
Crowd Control Barriers Frame 1.5" Tube Height:3.6'(1100mm)*Wdith :8.0' (2430mm) Upright :5/8"*4' spacing
Crowd Control Barriers Frame 1.5" Tube Height:3.6'(1100mm)*Wdith :8.2' (2500mm) Upright :5/8"*4' spacing
Crowd Control Barriers Frame 1.5" Tube Height:3.6'(1100mm)*Wdith :8.6' (2600mm) Upright :5/8"*4' spacing
-
Height of Crowd Control Barrier :4' Height etc
-
Frame Tubing available Custom 1" 1.2" 1.25" 1.6"
-
Uprights Available 3/4" etc
-
Finish :Pre-galvanized 100gram/m2 and hot dipped galvanized 600gram/m2 electrostatic coated a minimum 80 microns
-
Various of Design Base available such as flat cross and bridge base etc
Applications
Crowd control barrier, also known as a pedestrian barrier, is effective crowd control and site demarcation product extensively used in public areas, such as an event, sports venue, public rallies, demonstration, outdoor festival, concerts. They are considered versatile with the following functions:
-
Direct pedestrian traffic.
-
Keep the crowd in a designated area.
-
Protect cordoning off restricted areas.
-
Designate space for lines.
-
Control large gatherings.
-
Deter motorists and pedestrian entering.
-
Create allocated walkways.
-
Also can be used at construction sites and road works
During events and gatherings, crowd control barriers provide safety and security for patrons and the general public. They provide a quick and efficient barrier perfect for all situations where you need to divert or keep the public away from a designated area.
Features
They incorporate a specially designed locking system, that is both easy to use and very secure. The barriers are light and easy to handle while being strong and robust at the same time.
Why choose our product
Three types of bases: The Construction Sites Barriers are composed of crowd control and barrier bases
which are welded or bolted to the barrier. Our Road Safety Barriers are manufactured with a fixed base, flat
base or bridge base as shown in the picture:
-
With fixed leg welded to the frame permanently.
-
Ideal for public event areas where the speed of installation, dismantling and high security are the main concerns.
-
Perfect for directing foot traffic.
yellow plastic traffic road barriers CCB-2:
-
With the removal and replaceable flat legs bolted on the panels
-
Easy storage, transportation and stacking together.
-
Much more stable and safer.
-
Flat leg design minimizes the trip hazard.
yellow plastic traffic road barriers CCB-3:
Interlocking designThe Construction Sites Barriers can be attached to each other in a line or take corners of up to 90
degrees. Once the barriers interlocked, it is not easy to topple them over. Panels with single or double hooks are available at your request. Normally, the two hooks can be manufactured 15 or 25 inches apart Construction Sites
Barriers take Hand welded with high strength. crossover points of Construction Sites Barriers are 360 degrees welded complying with advanced welding technology. Construction Sites Barriers take Portable frame for handling. Before being interlocked, the crowd control barriers can be lifted just by individuals. Its portable character makes the panels easier to handle, install and transport.
Popular Specifications of yellow plastic traffic road barriers
Panel Size: | 2200mm(L) x 1100mm(H) |
2200mm(L) x 1100mm(H) | 25mm O.D. |
Infill Pickets: | 20mm O.D. 200mm Spacings |
Weight: | 18.5kgs about |
Finish: | a. Hot Dipped Galvanised to Australian Standard – 42 Microns b. Hot Dipped Galvanized Tube--Welding--Silver Spray Painted (Popular) c. Hot Dipped Galvanised Tube--Welding--PVC Painted (Popular) |
Feet: | a. Flat Feet — Removable (Popular) b. Flat Feet — Welded With Panels c. Bridge Feet — Removable (Popular) d. Bridge Feet — Welded With Panels |
Other Specifications | Can According to Customers Requirements |
concert electronic pedestrian control barriers are ideal for directing pedestrians
|

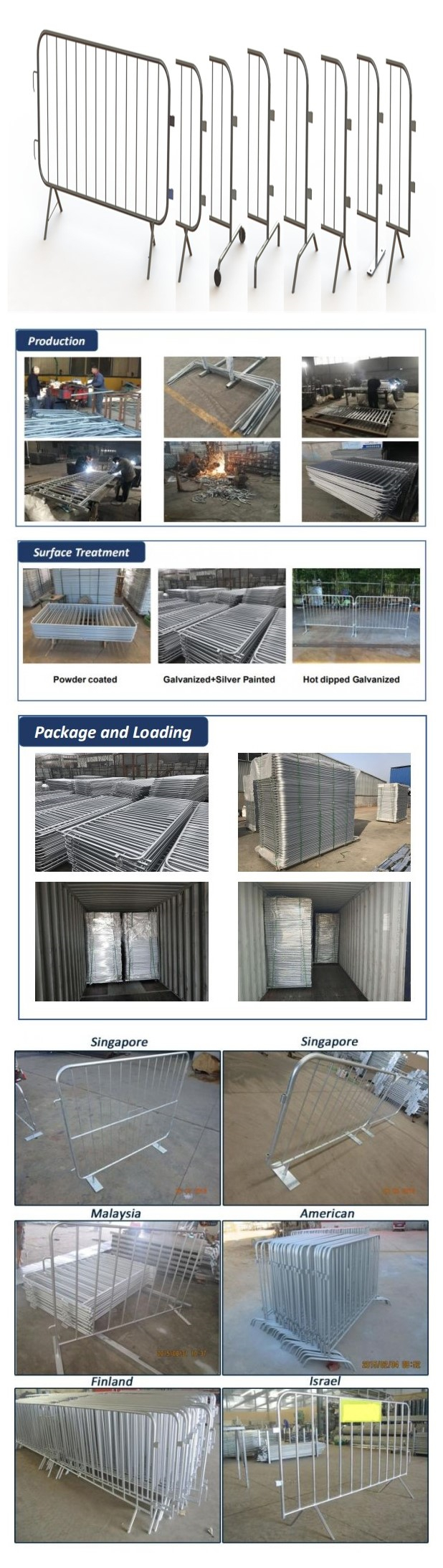

1100mm x 2200mm crowd Control Barriers For Event Weight 18kg Outer Frame 25mm upright 20mm Images
|
